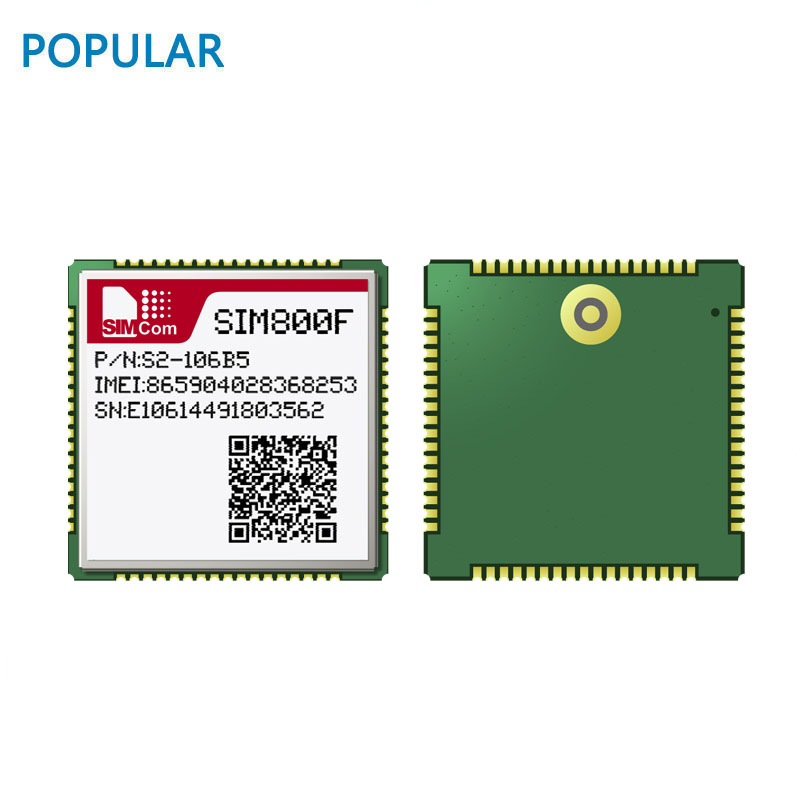

SIM800F is a quad-band GSM / GPRS module, SMT package. Its stable performance, the appearance of compact, cost-effective, to meet the diverse needs of customers.
SIM800F operating frequency of GSM / GPRS 850/900/1800 / 1900MHz, voice, SMS and data information can be transmitted with low power consumption. SIM800F size
24 * 24 * 3mm, can be applied to a variety of compact product design needs.
The main features
• Quad-band 850/900/1800 / 1900MHz
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Meet GSM 2/2 + standards
- Class 4 (2W @ 850 / 900MHz)
- Class 1 (1W @ 1800 / 1900MHz)
• Size: 24 * 24 * 3mm
• Weight: 3.1g
• Controlled by AT commands (3GPP TS 27.007, 27.005 and
SIMCOM enhanced AT command set)
• SIM Application Toolkit
• Supply voltage range: 3.4 ~ 4.4V
Low power consumption
Operating temperature range: -40 ℃ ~ 85 ℃
data transmission
• GPRS class 12: up to 85.6 kbps (downstream rate)
• Support PBCCH
Coding schemes CS 1, 2, 3, 4
PPP-stack
• CSD up to 14.4 kbps
USSD
• Non-transparent
SMS
• Peer-to-peer MO and MT
• SMS broadcasting
Text and PDU modes
Software Features
• 0710 MUX protocol
• Embedded TCP / UDP protocol
FTP / HTTP
• MMS
•e-mail
DTMF detection
• Interference detection
•recording
SSL
TTS Chinese (optional)
• Bluetooth 3.0 (optional)
Voice
• Tricodec
- Half-rate (HR)
- full rate (FR)
- Enhanced Full Rate (EFR)
AMR
- Half-rate (HR)
- full rate (FR)
• Supports echo suppression algorithms
Interface
68 SMT pins
• Analog audio interface all the way
• Support RTC
USB interface
Serial interface
• SIM card interface (3V / 1.8V)
GPIO
ADC
• PWM
I2C
• GSM antenna pin
• BT antenna pin
compatibility
• AT cellular command interface
Certification
ROHS
REACH
• CE (in progress)
• GCF (in progress)
